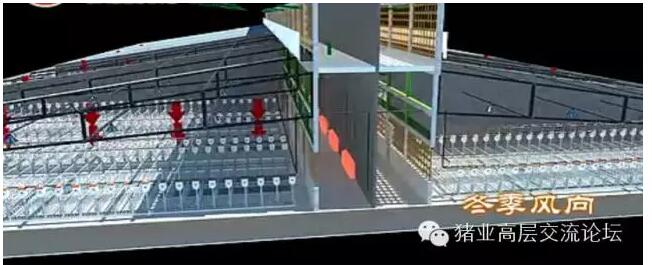

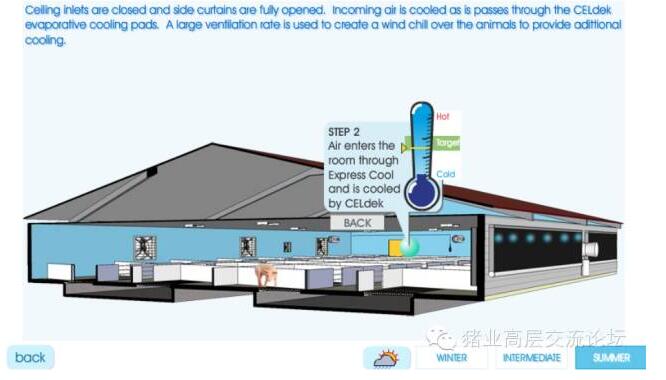

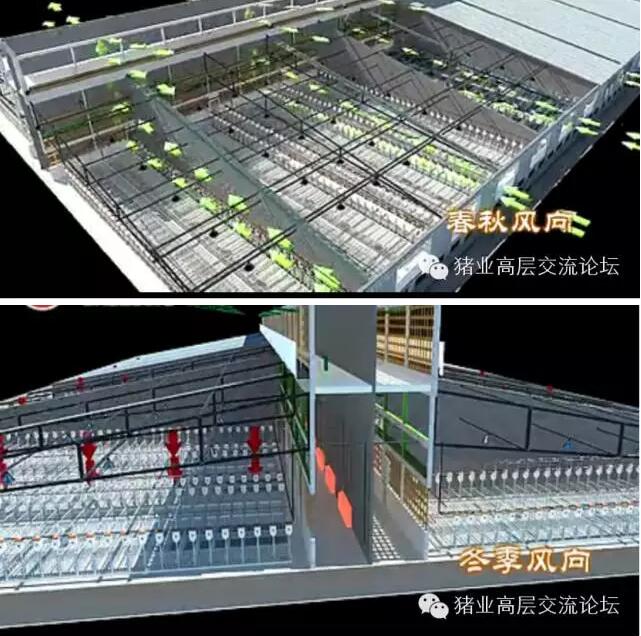

混合通风春秋季通风原理 混合通风冬季通风原理 混合通风夏季通风原理 Air work
新鲜空气Blue Arrows Denote Fresh Air
猪舍气体 Green Arrows Denote Room Air
废气 Red Arrows Denote Room Air Air work

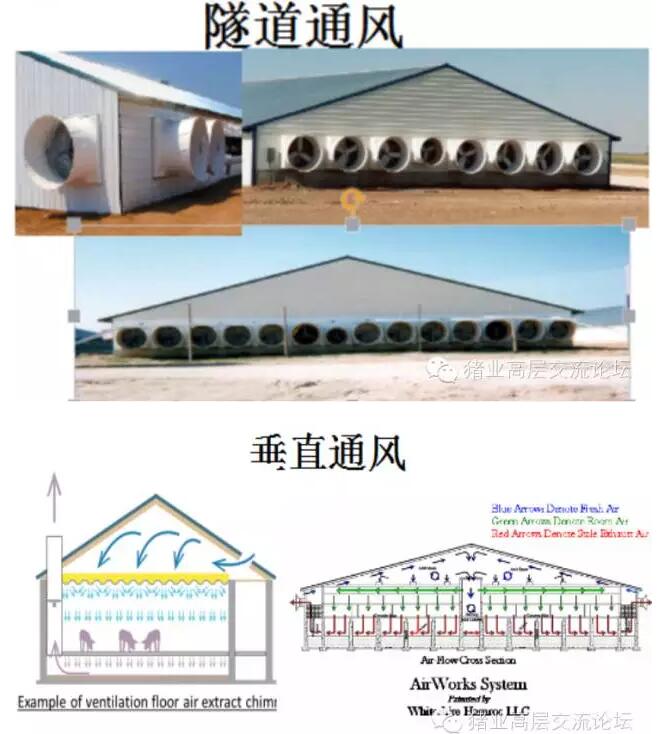

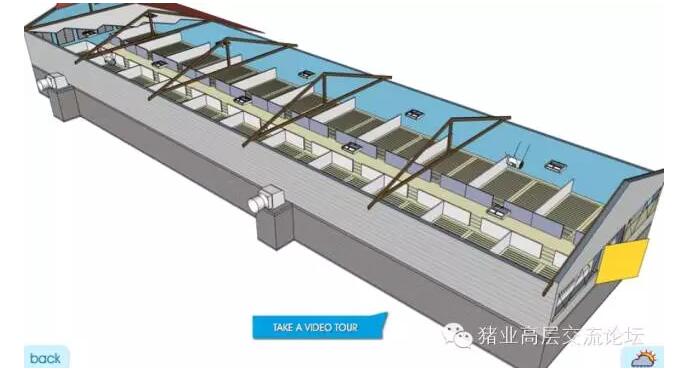

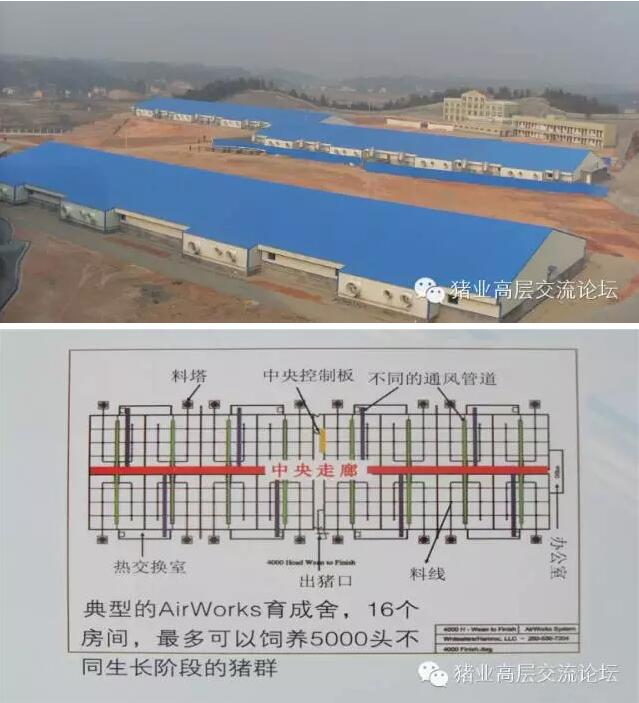

1000头母猪规模的猪场的AirWorks猪舍
每栋面积3000平米，由1栋母猪舍，2栋育成舍组成。 Air work

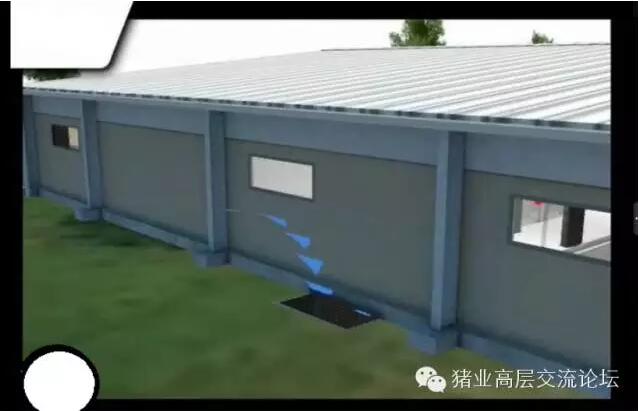

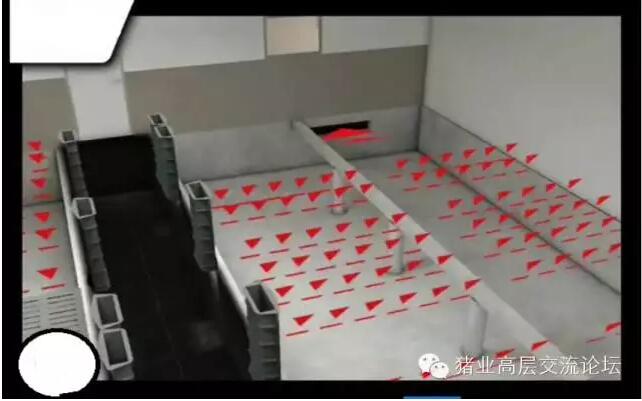

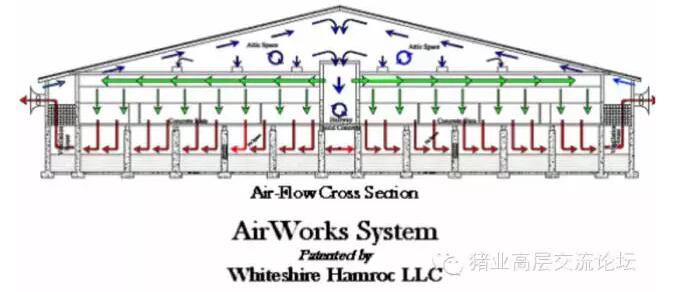

100% Pit Ventilation=Downflow of ventilating air完全的粪坑通风=换气风向下

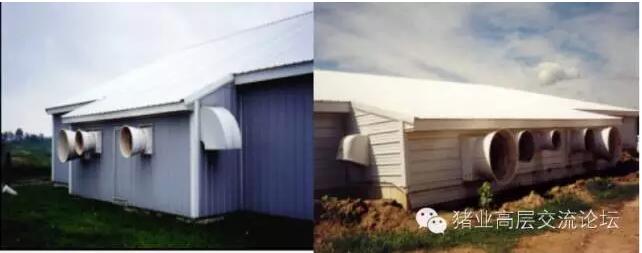

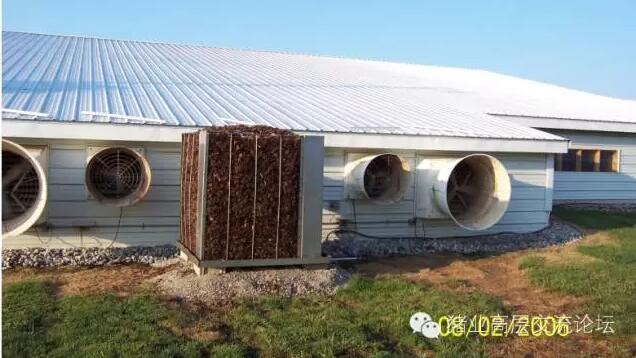

Grouping of Fans in Ventilation Houses通风室里不同类别的风机
Single Fan Controller for multiple rooms可控多个房间的单独风扇控制器

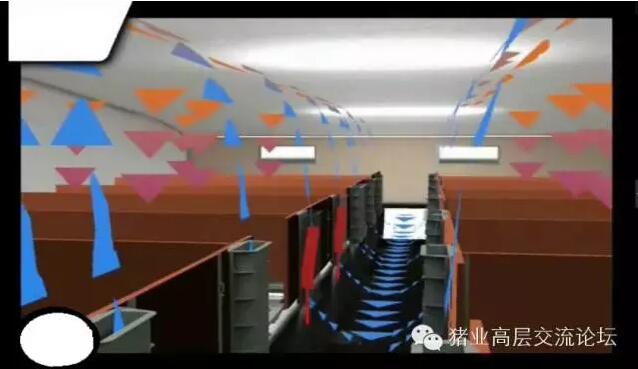

Unique Duct system=uniform distribution of fresh air单独的通风管道系统=新鲜空气分布平均Integrated Heat Exchangers整合的热交换室

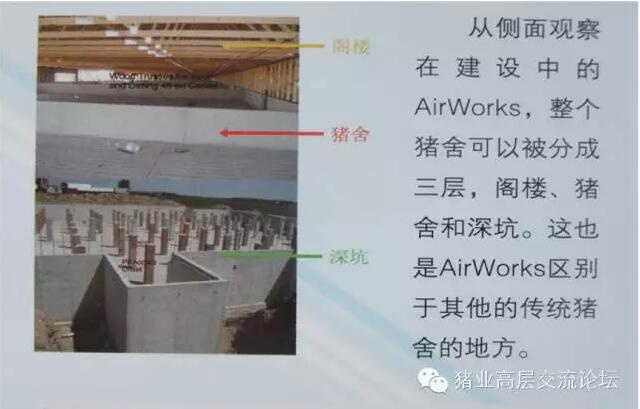

All Air Flows through the attic所有的空气流动都会经过阁楼
Multiple Room Capability—Common Pit多个房间——同一个粪坑

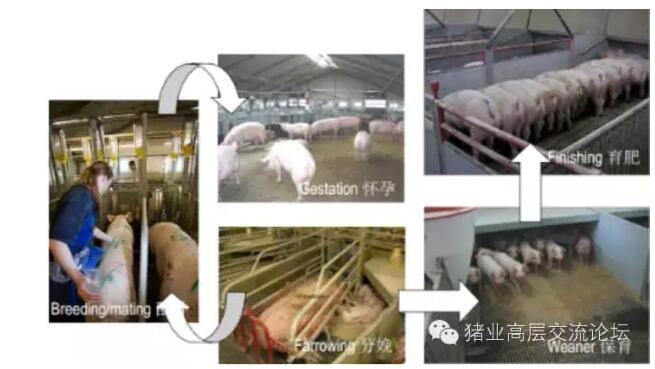

Age segregation by room--AIAO pigflow 每个房间对应着不同年龄的猪群——全进全出 Air work典型的热交换室

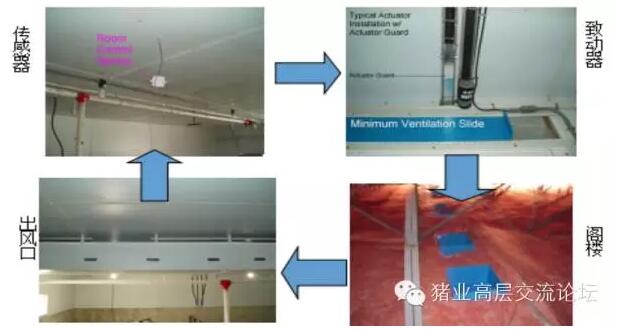

Ventilation operating and Control is a 3 step process 换气操作有三个步骤：
Main Controller —constantly senses average room temperatures through the common pit and controls fan operation主控制器 ——通过粪坑感应器持续的感应猪舍平均温度和控制风扇运作
Manual hallway slides —set for minimum needs of each pig room manually. Normally adjust once a week. 手动走廊滑板——设定每个房间的最小通风量。通常每周调节一次
Automated Room Controller —senses individual room temperatures and adjusts each rooms ceiling inlets to provide more or less incoming fresh air to the room.自动房间控制器——感应每个房间的温度，然后通过调节屋顶的空气进口大小来提供适量的空气进入房间 Air work典型的热交换室

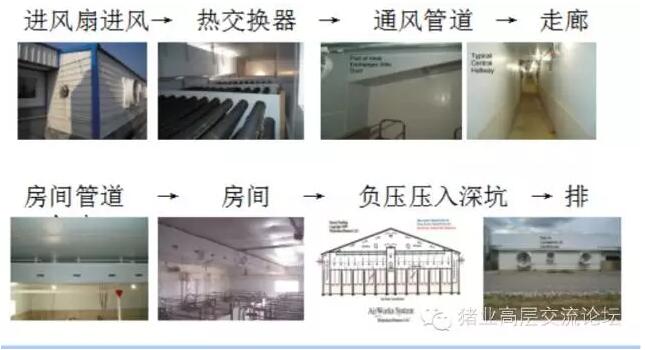

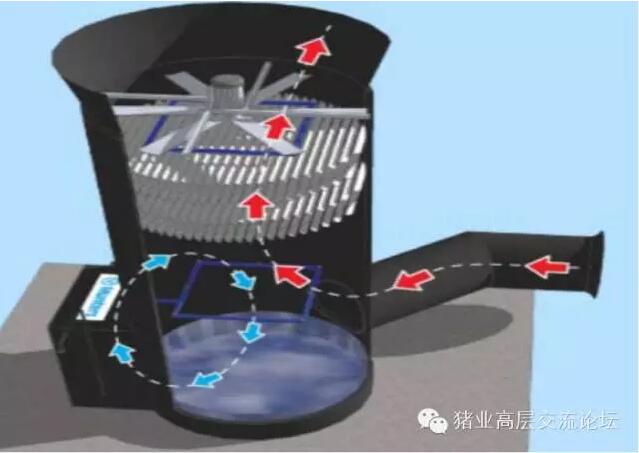

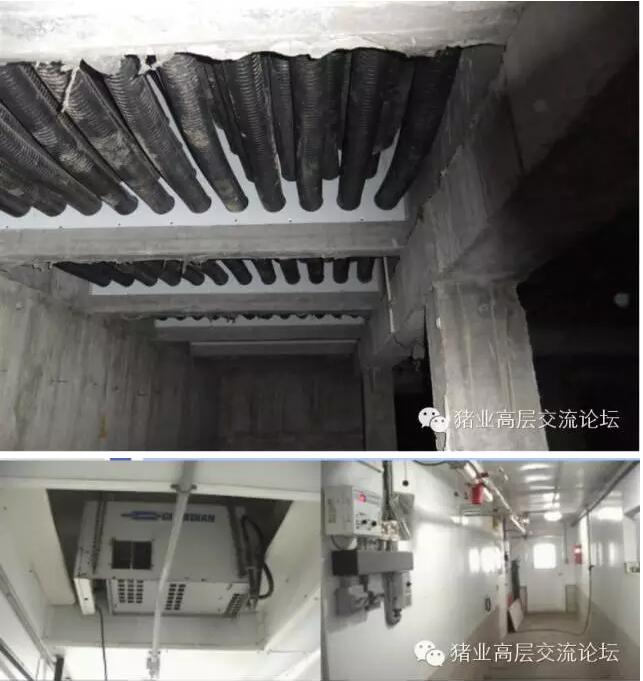

Heat Exchangers recover heat exhausted from the pit fans that would otherwise be wasted. This dramatically decreases heating costs and improves air quality within the building.热交换室收集了废气当中原本会被浪费的热量。这大大降低能耗的同时，还改善了猪舍里空气的质量。
Air work典型的热交换
All the minimum air that enters the pig space is tempered in the hallway
所有进入猪舍里的最小需求量的空气都会在走廊里被进行适当的调节
Heater in Attic for Tempered Hallway
在阁楼中的加热器，用来调节走廊温度
自动装置
弥散式通风

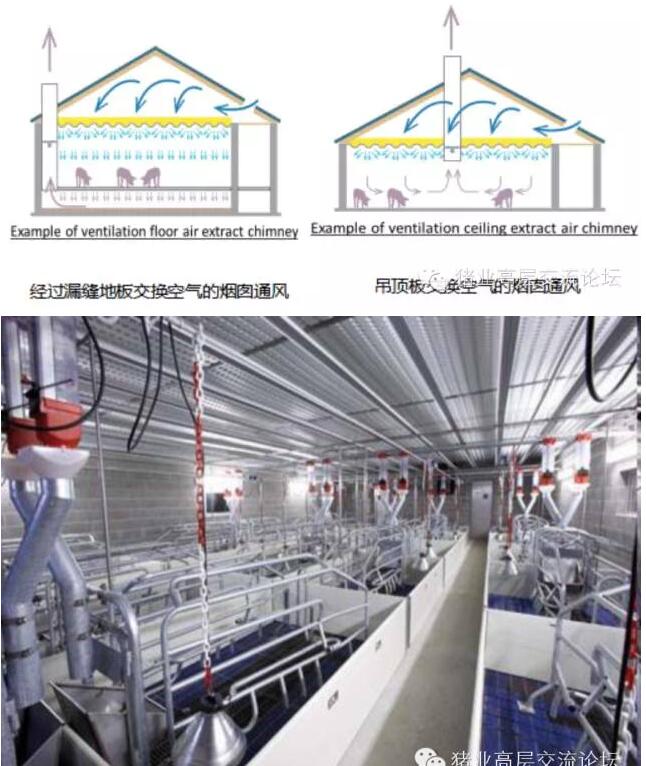

吊顶板交换空气的烟囱通风

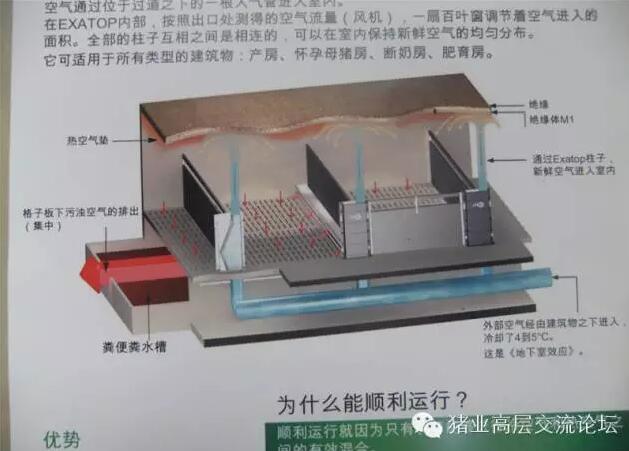

经过漏缝地板交换空气的烟囱通风

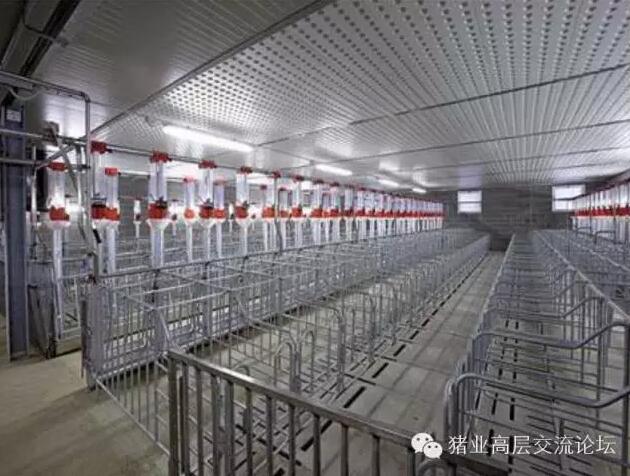

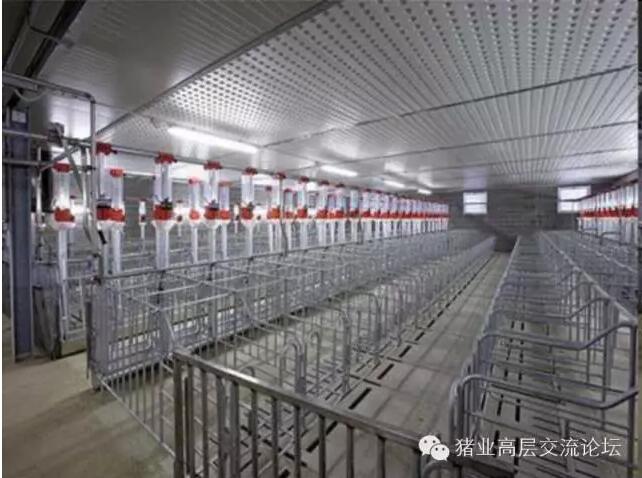

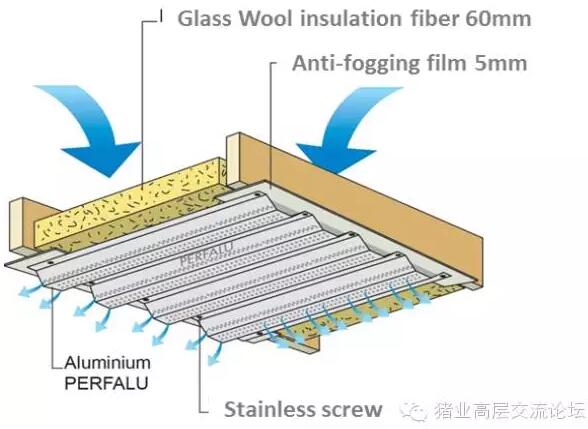

弥散顶棚的好处ADVANTAGES OF PERFALU
< 铝制，更卫生，易于清洁，持久耐用Aluminium made for better hygiene, easy cleaning and durability.
< 多孔多向，气流安全而匀称Multi holes—Multi direction for safe and homogenous air diffusion.
<低风速但因多孔而风量高/可与篮式风机结合使用
Slow air speed and high debit of new air due to multi holes / can be combined with basket fans
< 室内环境更舒适=猪只舒适，生长更快更安全
Better ambiance into the room = animal comfort, fast and safe growth.
< 加热和降温的最佳风量=节能 Air volume optimization for Heating/Cooling = energy saving.
< 可用于中央通风或烟囱式通风Can be used for centralized ventilation or chimney.
< 可用于正压或负压猪舍Can be used for positive or negative pressure building.
#p#副标题#e#

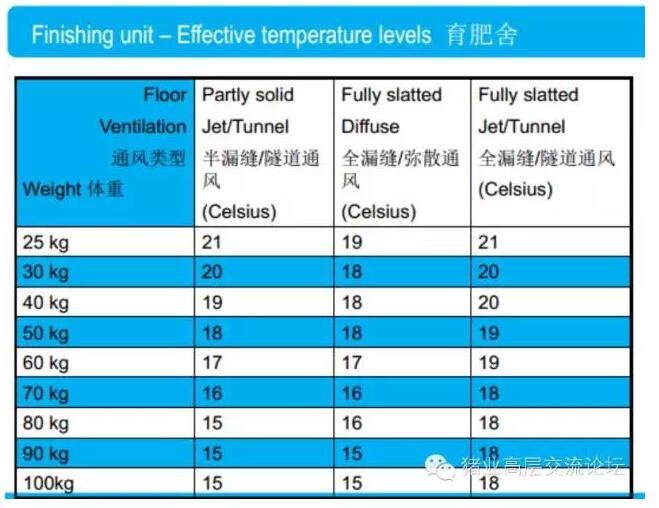

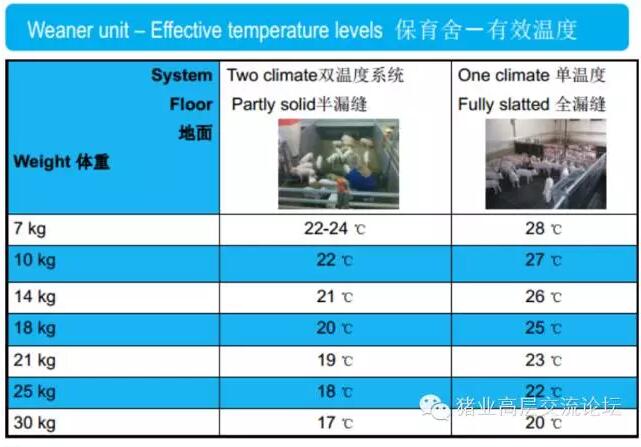

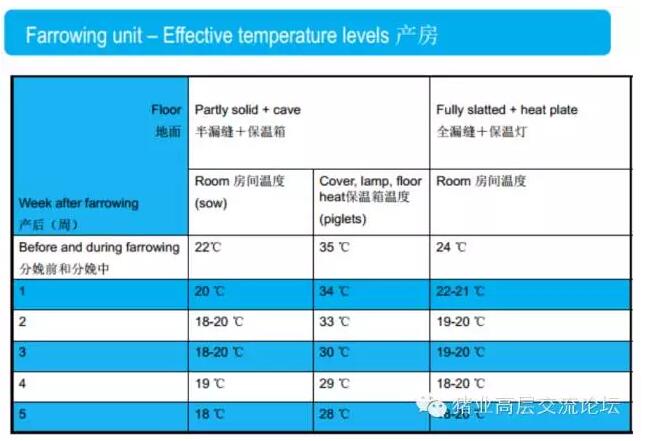

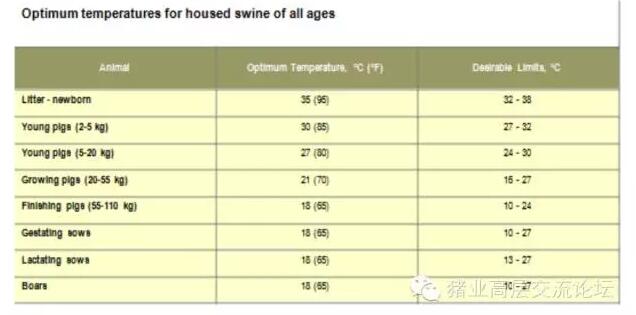

每比临界温度低一度 ，则一头成长猪每天损失的活重为10-12g . 1ºC的差距造成每头猪生长期必须额外花费£1.00的饲料成本。
For every degree the LCT(lower critical temperature)a growing pig looses apptoximately10-12g of liveweight gain per day. A level of 1 ℃below the LCT during the growing period could cost￡1.00 in extra feed per pig 3-35

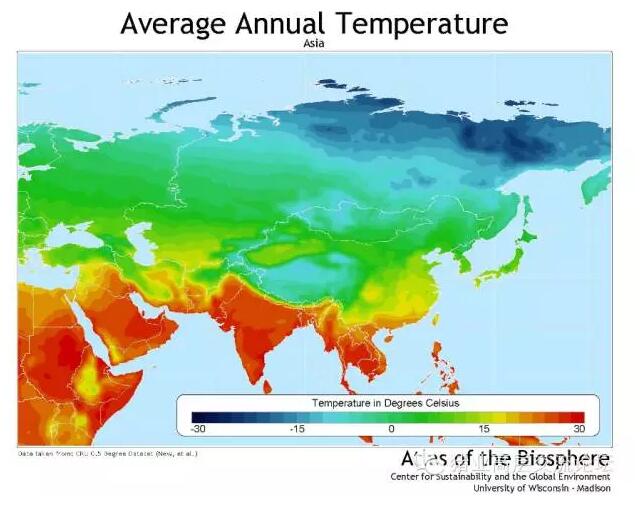

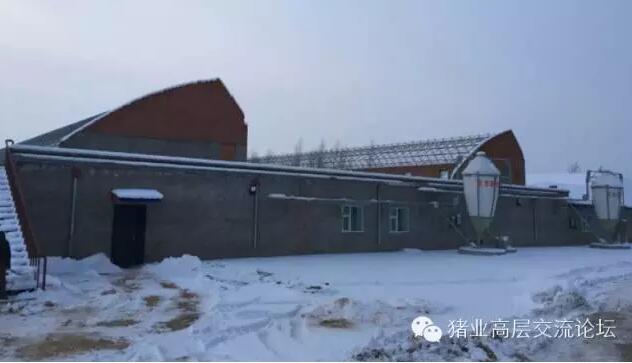

中国幅员辽阔，气候多样，猪场建造必须适应当地环境
As China is a big country including various climates, the pig building has to be adapted to the locatio
